  • Parnik intelligent system

By creating a network between temperature, humidity, shock, and fire sensors and CCTV cameras, Parnik intelligent system receives all related events and alarms whether inside or outside a commercial, industrial or service space, and then sends the data through the Internet, SMS, Cloud, or Email to the control center where appropriate measures will be adopted.

Features of Parnik intelligent control system

  1. Monitoring network equipment .based on the protocol.
  2. Video Surveillance.
  3. Online monitoring of various sensors such as Current, Flow, Voltage, Smoke, Gas, Temperature, Humidity
  4. The possibility to define various remote control and monitoring scenarios
  5. The possibility to define different access levels for the technical staff of the monitored sites

Cooling performance at remote sites

Free cooling uses suitable outdoor air to remove heat from a shelter. The opportunity to reduce compressor runtime depends on outdoor conditions, equipment heat load, airflow and the operating limits set for the site.

To quantify savings, define the measurement boundary, record a baseline and compare metered consumption over periods with comparable weather and equipment loads. State whether the meter covers the cooling equipment or the entire facility.

Read the South Khorasan project record for the scope of supply and the operator’s commissioning assessment.

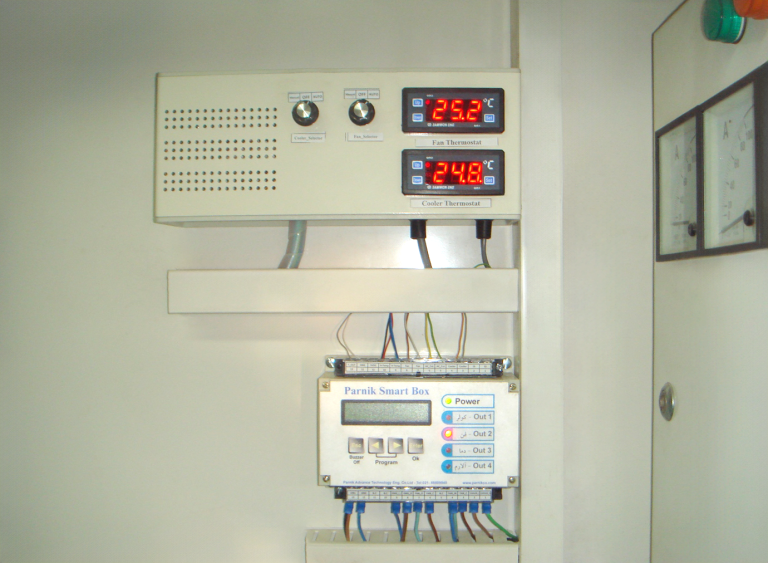

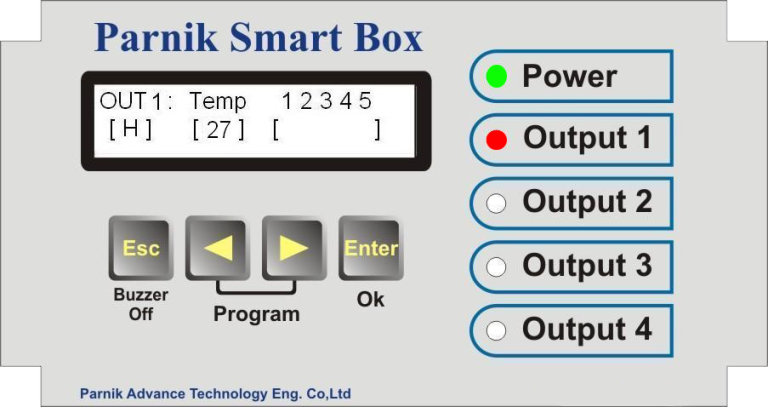

Origins of the Smart Box design

Iran’s industrial ownership registration office recorded the invention Parnik Smart Industrial System to Control Surrounding Parameters in the name of Kamran Elahianfar on 21 December 2009, under Invention Registration Book No. 62522. This historical registration concerns the original environmental control system.


In telecommunication sites such as mobile BTS, generator room, and server rooms to control the ambient temperature, a cooling system is usually working permanently at a predetermined temperature to reduce the heat generated by installed equipment. However, the cooling systems are still working while the ambient temperature is within the optimum temperature range for equipment operation.

Parnik intelligent system with Free Cooling feature allows the system to turn coolers off when the outdoor temperature is in a desirable range (for example, below 18 degrees Celsius) and use outside air (after filtering it) to reduce the temperature.

Furthermore, if the outside temperature exceeds the desired range defined for each sensor, the cooling system will start automatically and the pathway of outdoor air into the site will be closed.

This feature is very useful for remote sites or where there are a lot of sites with high geographical dispersion. On the other hand, it will reduce depreciation and maintenance costs drastically.
